VCAS 300 Vehicle ultrasonic

Featuring the same 3 Sensor Detection System for site dumpers over 2m wide as VCAS 200. Industrialised object detection system for blind spot monitoring to the front of site dumpers in a predetermined configuration a 4metre primary sensing zone can be achieved to the front of the dumper, providing effective visual and audible warnings, alerting the operator of immediate dangers.

VCAS 300 also includes

Warning lights

Three lights representing the individual sensors, left, centre and right and when detection is made the appropriate red lights on the display will illuminate showing where object is detected and “Caution object detected” will be sounded.

Silent function

Night silent function allows operators to disable the speakers from sounding, which is controlled by a key switch only to be selected by authorised users.

Tip sensor

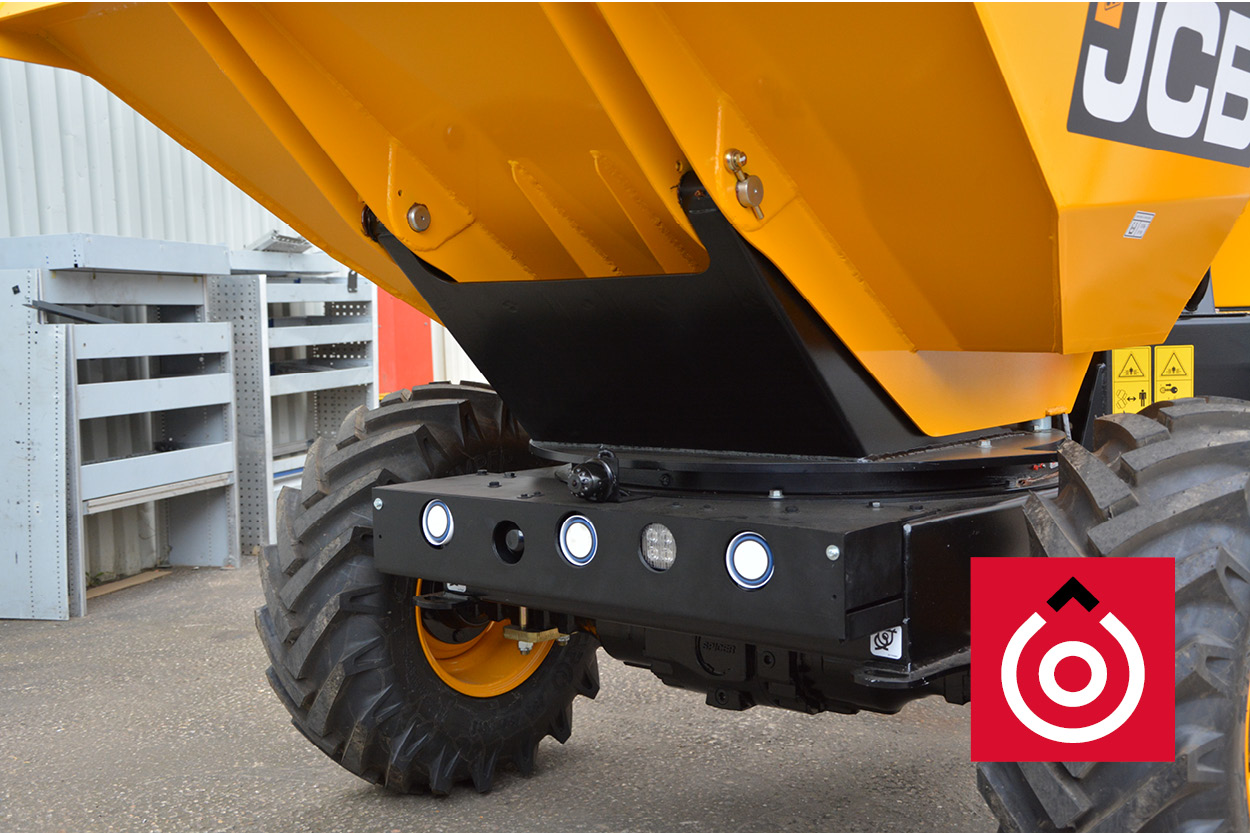

Ultrasonic sensor incorporated into the chassis which silences speaker whilst tipping avoiding any unnecessary warning sounds.

System status indicator

Function displays a green light when the system is working correctly. Diagnostics also inform operator if there is any cable damage via sounding a warning.
